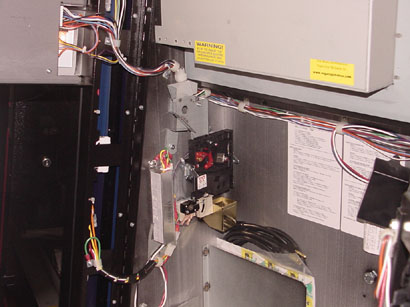

REGATTA COIN KIT INSTALLATION INSTRUCTIONS [Click image to enlarge]

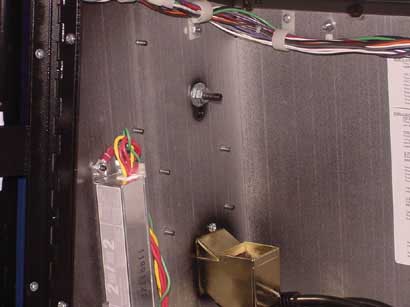

REMOVE THE COIN REJECT HOLE COVER FROM THE INSIDE OF THE CABINET ON THE LEFT HAND SIDE USING A 7/16” NUT DRIVER OR SOCKET.
INSTALL THE COIN REJECT BUTTON ASSEMBLY

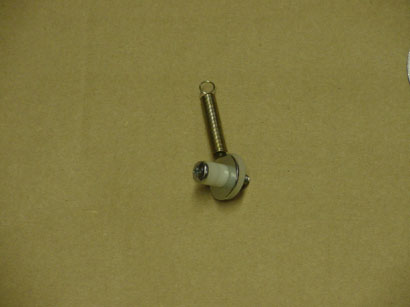

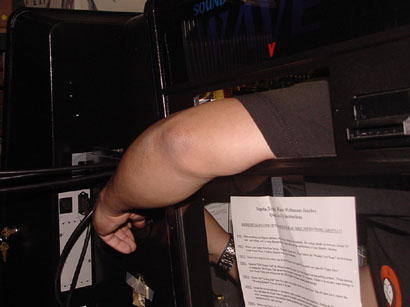

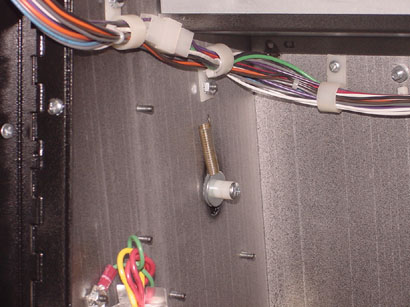

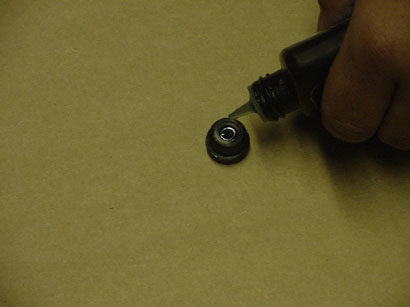

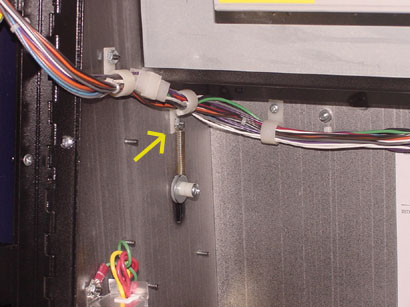

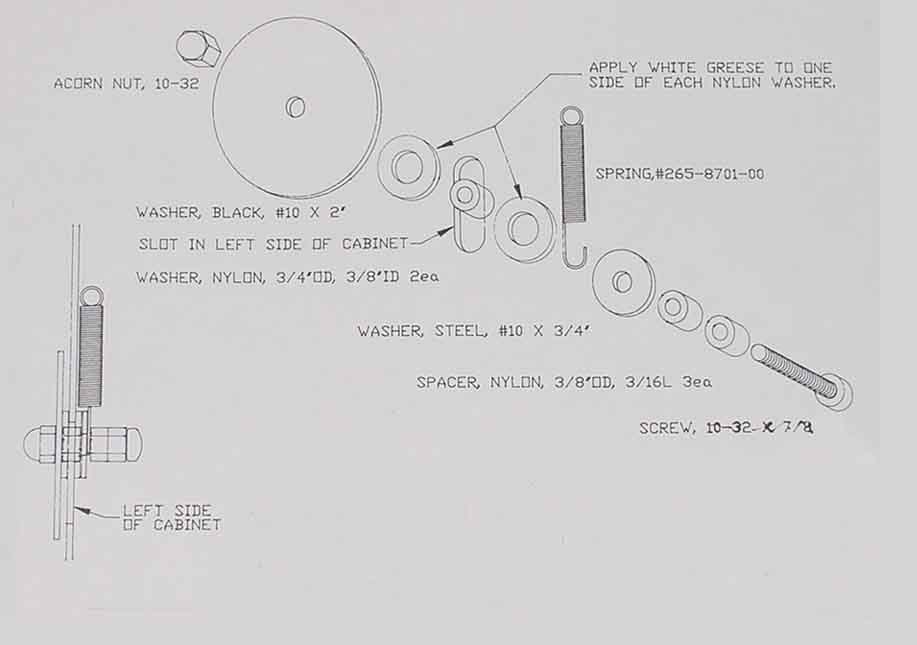

PRE ASSEMBLE THE COIN REJECT BUTTON ASSEMBLY AS SHOWN ON THE DRAWING PROVIDED WITH YOUR KIT, REMOVE THE KNOB (WHICH REPLACED THE ACORN NUT), THE BLACK #10 X 2” WASHER AND THE NYLON WASHER FROM THE ASSEMBLY. THESE THREE PARTS WILL MOUNT FROM THE OUTSIDE OF THE CABINET. APPLY GREASE TO THE NYLON WASHERS ON THE SIDES THAT FACE THE CABINET TO ALLOW THE ASSEMBLY TO SLIDE SMOOTHLY. APPLY LOCK-TITE TO THE INSIDE OF THE BLACK KNOB TO PREVENT IT FROM LOOSENING AND FALLING OFF IN THE FUTURE. INSERT THE ASSEMBLY INTO THE SLOT ON THE LEFT HAND SIDE OF THE CABINET FROM THE INSIDE, OPEN THE KEYBOARD AND USE THE HOLE ON THE UPPER DOOR TO PUT YOUR ARM THROUGH TO PUT THE NYLON WASHER AND THE BLACK WASHER ONTO THE 10-32 SCREW STICKING OUT. FASTEN TOGETHER USING THE BLACK KNOB. REMEMBER TO APPLY LOCK-TITE TO THE KNOB TO PREVENT IT FROM FALLING APART. TIGHTEN ASSEMBLY USING A PHILLIPS SCREW DRIVER, DO NOT OVERTIGHTEN, ASSEMBLY MUST BE ABLE TO SLIDE UP AND DOWN. DIRECTLY ABOVE THE REJECT HOLE IS A CABLE CLAMP FASTENED BY A 6-32 NUT, USING A 5/16” NUT DRIVER OR SOCKET REMOVE THE NUT AND HOOK THE OTHER END OF THE SPRING ONTO THE PEM STUD ON TOP OF THE CABLE CLAMP, FASTEN DOWN WITH THE 6-32 NUT. MAKE SURE THE REJECT BUTTON SPRINGS BACK UP AFTER BEING PULLED DOWN.
 |
 |
 |
 |
|||
 |
 |
 |
 |
|||

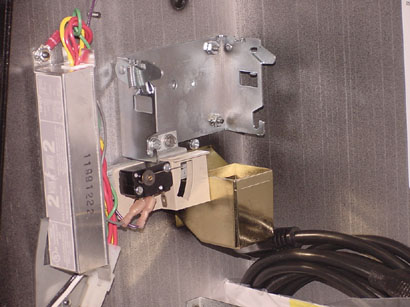

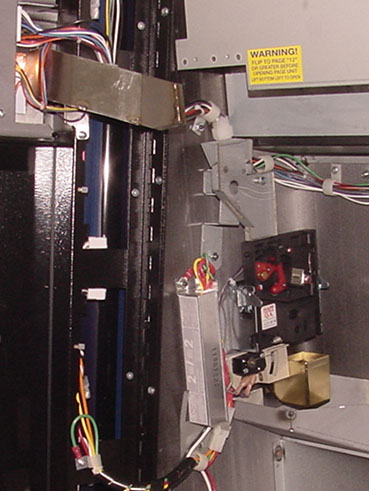

INSTALLING THE COIN MECHANISM BRACKET [Click image to enlarge]

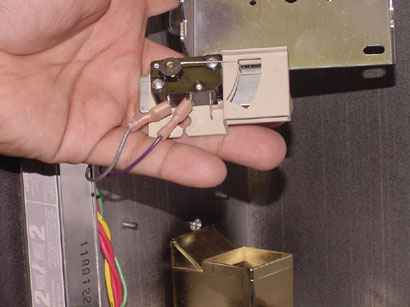

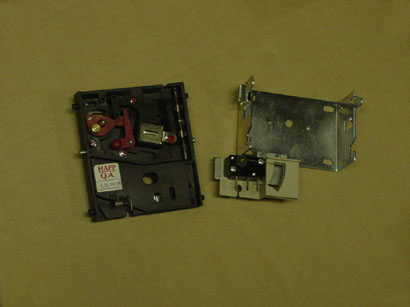

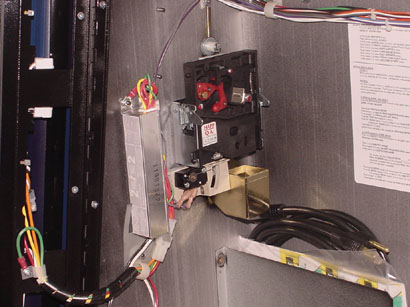

ABOVE THE COIN REJECT CUP ARE FOUR PEM STUDS NOT BEING USED, THESE ARE FOR MOUNTING THE COIN MECH BRACKET. REMOVE THE COIN MECHANISM FROM THE BRACKET AND MOUNT THE BRACKET ONTO THE STUDS USING THE FOUR 6-32 NUTS, PROVIDED IN THE KIT. THERE ARE TWO COIN WIRES HANGIN GABOVE THE COIN AREA, ONE IS GRAY AND THE OTHER ONE IS VIOLET. CONNECT THE GREY WIRE TO “COMMON” AND CONNECT THE VIOLET WIRE TO “NORMALLY OPEN”. *IF YOU CONNECT “NORMALLY CLOSED” THE DISPLAY WILL READ “STUCK DKB SWITCH”.
INSTALLING THE COIN DROP CHUTE

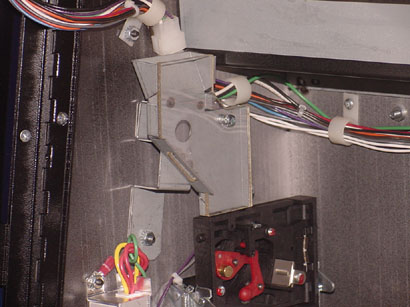

TO THE UPPER LEFT OF THE COIN MECHANISM BRACKET ARE TWO PEM STUDS TO MOUNT THE COIN DROP CHUTE. MOUNT THE COIN DROP CHUTE ONTO THE TWO PEM STUDS AND FASTEN USIN TWO 6-32 NUTS, PROVIDED IN THE KIT. MAKE SURE THE TOP OF THE CHUTE DOES NOT HAVE WIRES BLOCKING THE COIN PATH. REMOVE THE PROTECTIVE FILM FROM THE PLASTIC COIN DROP COVER, THIS SHOULD BE CLEAR TO CHECK FOR COIN JAMS. MOUNT ONTO THE COIN DROP CHUTE USING THE 6-32 SCREWS, PROVIDED IN THE KIT.
 |
 |
 |
 |
 |
|

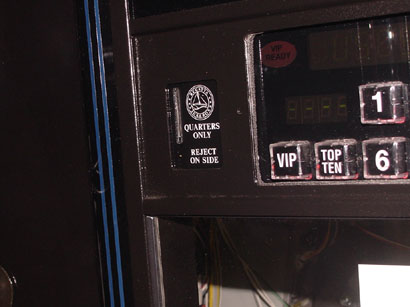

INSTALLING THE COIN ENTRY CHUTE [Click image to enlarge]

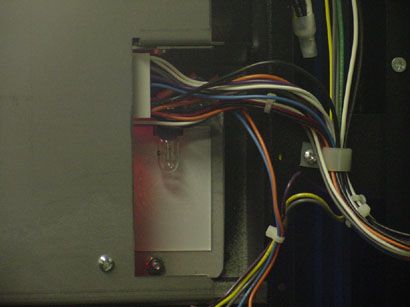

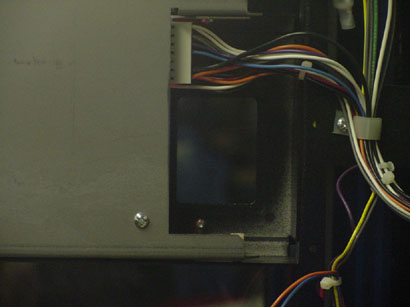

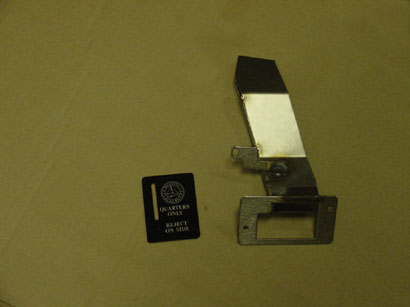

OPEN THE UPPER DOOR TO THE WALLBOX, AND OPEN THE PAGE UNIT. ON THE POWER DISTRIBUTION BOX, FLIP THE SERVICE LIGHT SWITCH UP TO TURN OFF POWER TO EVERYTHING BUT LEAVE THE LIGHTS ON. LOOKING AT THE DOOR FROM THE INSIDE, LOCATE THE COIN PLEXI IN THE UPPER RIGHT HAND CORNER. REMOVE THE BRACKET AND PLEXI BY USING A 5/16 NUT DRIVER TO REMOVE THE TWO 6-32 NUTS. PLACE THE SLOTTED COIN PLEXI IN PLACE AND MOUNT THE COIN ENTRY CHUTE TO HOLD IT IN PLACE. MOUNT THE COIN LIGHT SOCKET TO THE UPPER RIGHT PEM STUD; FASTEN THE COIN ENTRY CHUTE USING THE SAME 6-32 NUTS. THERE IS A SLOT ON THE COIN ENTRY CHUTE THAT LINES UP WITH A HOLE ON THE UPPER DOOR, INSERT A 6-32 SELF-TAP SCREW HERE.
INSTALL THE COIN BOX TOWARDS THE BACK LEFT HAND CORNER OF THE WALLBOX. CLOSE THE DOOR AND TEST ALIGNMENT BY RUNNING COINS THROUGH THE COIN SLOT.
